M Series
Best efficiency for consumer electronics.

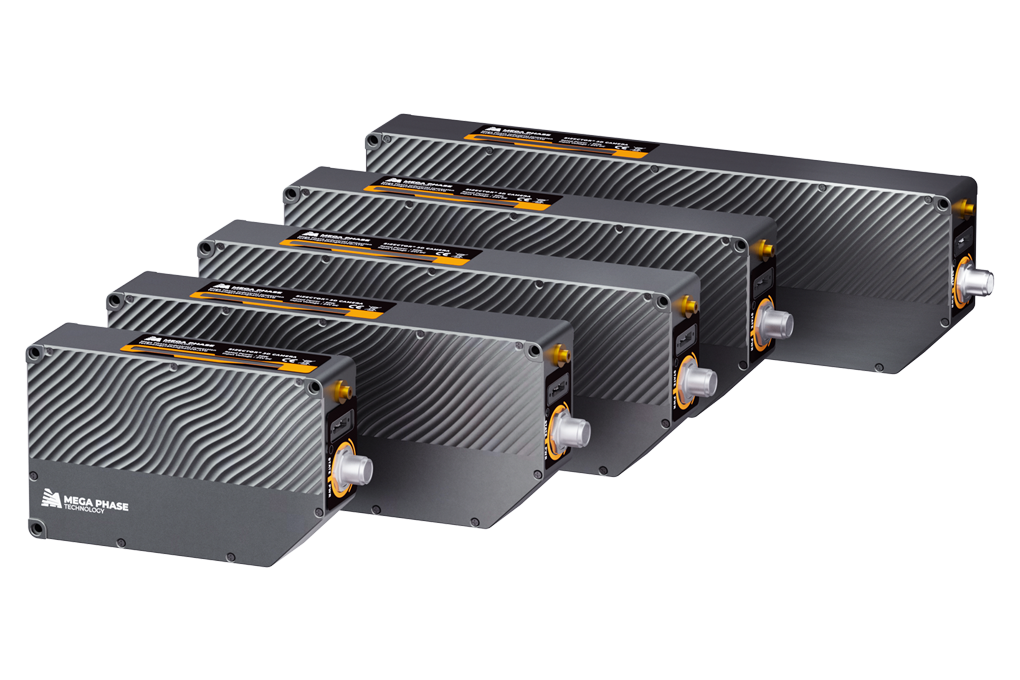

Mega Phase offers optimal 3D industrial cameras of M series to measure components on mass production lines in consumer electronics that require ultra-fast and accurate results. At the core is their best-fit imaging of 5.1 megapixels at 8.8 FPS, all in one hand. Compact yet uncompromising, their <0.6 µm repeatability shows the step-up balance of precision, speed, and cost.
Click to check whether this entry-level 3D camera fits your vision system!
-
Micron-level precision with high-resolution imaging
5.1 megapixel global shutter CMOS sensor, telecentric optics design
Reliable critical dimension measurement (CD), seeing subtle step height difference
No motion blur or geometric distortion
-
8.8 FPS rapid image acquisition proven on high-throughput production lines
Accelerated by our unique hardware computational imaging technology
≤0.12s single-frame processing
Unblock the bottleneck of efficiency in traditional measurement instruments
-
Light-weight, compact, flexible to integrate
The M Series offers industrial-grade performance in a lightweight design, allowing for flexible mounting in tight spaces. It significantly enhances the agility of automated systems.
-
Similar to a phone in hand (135×85×35mm), 0.52 kg (equivalent to 3 iPhones)
-
40% reduction in robotic arm payload consumption, boost in system agility
-
Industrial-grade<0.6 µm repeatability for CD
-
Class 2 inspection standard, reducing false alarms based on sub-pixel edge algorithms
-
Technical Details
-
M051040
-
M051090
-
M051140
-
M051200
-
M051280
-
M051025
-
Framerate of Whole Cycle Time（FPS）
-
Resolution (megapixel)
-
Reference Distance (mm)
-
Standard FOV (mm)
-
Measurement Range (mm)
-
Area Z-Repeatability (1σ) (um)*1*2
-
Pixel Interval (mm)
-
Dimensions (mm)
-
Weight (kg)
-
-
≤8.8 FPS(@1.3M)
≤2.5FPS(@5.1M) -
5.1(2472x2064)
-
100
-
40x33.4
-
±5
-
＜0.1
-
0.016
-
135x85x35
-
0.52
-
-
-
≤8.8 FPS(@1.3M)
≤2.5FPS(@5.1M) -
5.1(2472x2064)
-
225
-
90x75.1
-
±15
-
＜0.1
-
0.036
-
200x85x35
-
0.62
-
-
-
≤8.8 FPS(@1.3M)
≤2.5FPS(@5.1M) -
5.1(2472x2064)
-
250
-
145x121
-
±20
-
＜0.5
-
0.059
-
220x85x35
-
0.66
-
-
-
≤8.8 FPS(@1.3M)
≤2.5FPS(@5.1M) -
5.1(2472x2064)
-
350
-
200x167
-
±30
-
＜0.5
-
0.081
-
280x85x35
-
0.78
-
-
-
≤8.8 FPS(@1.3M)
≤2.5FPS(@5.1M) -
5.1(2472x2064)
-
500
-
280x233.8
-
±100
-
0.6
-
0.113
-
220x85x35
-
0.66
-
-
-
≤8.8 FPS(@1.3M)
≤2.5FPS(@5.1M) -
5.1(2472x2064)
-
100
-
25x20.87
-
±5
-
0.1
-
0.010
-
158.5x179x75
-
1.85
-
*¹ Full field of view (FOV) and full depth of field (DOF) repeatability: Set a ceramic plate as the target. Capture the plate at positive-limit DOF (near limit), zero plane (nominal), and negative-limit DOF (far limit). From each FOV, 9 edge/corner regions are evenly selected for measurement. Record the worst-case value among 27 regional z-axis repeatability*² as the result.
*² Regional Z-axis repeatability: The standard deviation (1σ) from 100 measurements of the difference in mean height (Z-value) between two adjacent regions (A and B). Each region covers 1% of the FOV.
-
Sizector® MPS-SDKRich language and platform support
Reusable interface controls
Open-source inline 3D measurement software
-
Trusted by Global Industry LeadersProven in high-end production lines of top-tier companies.
MTBF ≥100,000 h certified. Get your rush orders covered in 72h.
-
Unmatched Service & Reliability GuaranteeSpeedy response within 4 hours, solutions within 7 days, everything from fault diagnosis, part replacement to validation report.
