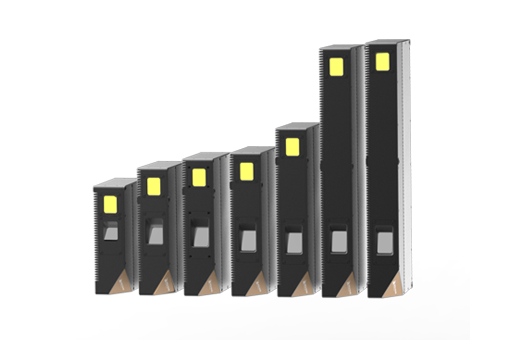

S028 Series is  a new member of the Sizector® 3D camera family, launched in July 2020. It has achieved leapfrog improvement in key performance such as speed and accuracy, further optimized user experience, and richer hardware computing functions. Like the previous generation products, S028 series is also based on phase-shifting structured light technology. Its shooting speed is significantly improved, and the full cycle frame rate can reach 20.3fps. It is the first industrial 3D camera that adopts phase-shifting structured light technology and can be used to shoot video.


Compared with similar products on the market at present, S028 series takes the lead in improving the z-axis repeatability accuracy of 3D structured light camera to a new order of magnitude - the z-axis area repeatability accuracy is as high as 50nm. Considering the complexity and variability of the site conditions during the project implementation, S028 series realizes various functions such as shooting control, reconstruction and point cloud processing through hardware calculation. S028 series is in the leading position in the world in terms of speed, accuracy and other performance. The imaging integrity has been greatly improved on the basis of the previous generation of products. The powerful performance of S series can meet the needs of most industrial testing sites, give users more choices during project implementation, and ensure the implementation efficiency of 3D visual testing projects.




Specifications

S028040

S028060

S028120

S028180

S028240

S028360

S028800

Framerate of Whole Cycle Time

≤20.3FPS(@0.7M)             ≤8.7FPS(@2.8M)

Resolution(Mega Pixels)

2.8M (1944x1472)

Reference Distance(mm)

95

160

200

305

423

1050

1500

Standard FOV(mm)

40x30.3

60x45.4

120x90.9

180x136.3

240x181.7

360x272.8

800x605.8

Measurement Range(mm)

±8

±10

±30

±45

±60

±90

+600-1400

Single Repeatability Z(1σ)(um)*1、*2

0.5

0.6

1.2

1.7

2.3

5.6

58.2

Area Repeatability Z(1σ)(um)*1、*3

0.05

0.05

0.11

0.19

0.21

0.41

9.54

Pixel Interval(mm)

0.021

0.031

0.062

0.093

0.123

0.185

0.412

Dimensions(mm)

146x180x53.5

146x210x53.5

146x225x53.5

146x235x53.5

146x275x53.5

146x404x53.5

146x412x53.5

Weight(kg)

1.9

2.1

2.1

2.3

2.4

2.9

3.1


*1. Repetition accuracy of full field of view and panoramic depth: shoot the target at the positive limit depth of field, zero plane and negative limit depth of field respectively, take 9 edge and corner areas evenly for each FOV for measurement, and take the worst result of 27 z-axis repetition accuracy values; The target is ceramic plate.

*2 Single point z-axis repetition accuracy: 100 times the standard deviation of the difference between the Z value of single point P and the z-mean value of region a. The area of a is 1% FOV, and P is located in the center of A.

*3 Area z-axis repetition accuracy: 100 times the standard deviation of the difference between the z-mean of area a and the z-mean of area B. A. B area is 1% FOV, and the two are adjacent.
