SX Series
The multi-projection technology achieves shadow-free 3D measurement.

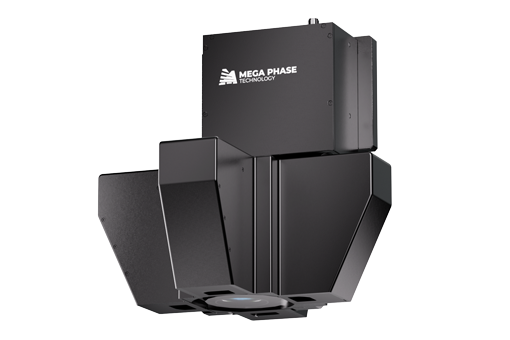

Sizector®3D Camera SX series carries optional 1-4 projectors and hardware computation imaging technology, which can eliminate shadows and occlusions caused when imaging based on single-direction projection.
-
Eliminate Shadows,
High Reflection Effects and
Higher-integrity 3D Point CloudsMulti-projection technology is used to capture multiple groups of 3D point clouds from different projection directions for hardware fusion, which has higher integrity.
-
High Precision & Fast Speed
After multi-3D fusion on the camera hardware, high-precision 3D point clouds output directly. Compared with PC-based system, the transmission data volume is sharply reduced, and the computation time is not increased.
-
Pixel-level Aligned 2D+3D Data
for One-stop High-resolution MeasurementUsing telecentric lens, 2D and 3D data can be aligned at the pixel level and external light source synchronization to achieve 2D+3D one-stop measurement and inspection. With external RGB light, users can obtain high-resolution 3D data and high-precision 3CCD true color images without Bayer matrix.
Technical Details
-
SS081017
-
ST081017
-
SQ081017 / SQ081017N
-
ST081032C
-
ST081043
-
SQ081043 / SQ081043N
-
ST162053
-
SQ162053 / SQ162053N
-
SQ081060N
-
STF162090
(FA lens)
-
Projector Quantity
-
Framerate of Whole Cycle Time (FPS)
-
Resolution (megapixel)
-
Reference Distance (mm)
-
Standard FOV (mm)
-
Measurement Range (mm)
-
Area Z-Repeatability (1σ) (um) *1*2
-
Pixel Interval (mm)
-
Dimensions (LxWxH, mm)
-
Weight (kg)
-
-
1
-
≤5.4FPS
≤18.7FPS (Binning) -
8.1M (2856 x 2848)
-
115
-
17.7 x 17.7
-
± 2
-
< 0.1
-
0.006
-
202.5 x 88 x 285
-
< 4.7
-
-
-
2
-
≤3.0FPS
≤10.5FPS (Binning) -
8.1M (2856x2848）
-
115
-
17.7 x 17.7
-
± 2
-
< 0.1
-
0.006
-
305 x 88 x 285
-
< 5.6
-
-
-
4
-
≤ 1.4FPS
≤ 4.8FPS (Binning) -
8.1M (2856 x 2848)
-
115
-
17.7 x 17.7
-
± 2
-
< 0.1
-
0.006
-
305 x 305 x 285
299 x 299 x 230 (N) -
< 7.1
4.9 (N)
-
-
-
2
-
≤3.0FPS
≤10.5FPS (Binning) -
8.1M (2856 x 2848)
-
120
-
32.8 x 32.7
-
± 5
-
< 0.16
-
0.011
-
280 x 77 x 244
-
< 3.9
-
-
-
2
-
≤2.7FPS
≤9.6FPS (Binning) -
8.1M (2856 x 2848)
-
105
-
43.4 x 43.3
-
± 4
-
< 0.2
-
0.015
-
310 x 114.5 x 280
-
< 6
-
-
-
4
-
≤1.5FPS
≤5.3FPS (Binning) -
8.1M (2856 x 2848)
-
105
-
43.4 x 43.3
-
± 5
-
< 0.2
-
0.015
-
300 x 300 x 280
319 x 319 x 233 (N) -
<7
5.0 (N)
-
-
-
2
-
≤2.0FPS
≤7.3FPS (Binning) -
16.2M (5328x3040)
-
185
-
53 x 30.2
-
± 10
-
< 0.3
-
0.010
-
330 x 130 x 335
-
< 8.5
-
-
-
4
-
≤1.0FPS
≤3.6FPS (Binning) -
16.2M (5328x3040)
-
185
-
53 x 30.2
-
± 10
-
< 0.3
-
0.010
-
330 x 330 x 335
329 x 329 x284.5 (N) -
<11
6.5 (N)
-
-
-
4
-
≤1.5FPS
≤5.2FPS (Binning) -
8.1M (2856x2848)
-
195
-
61.6 x 61.4
-
± 6
-
< 0.5
-
0.021
-
327 x 127 x 280.5
-
7.9
-
-
-
2
-
≤2.0FPS
≤7.3FPS (Binning) -
16.2M (5328x3040)
-
130
-
90 x 51.4
-
± 15
-
< 0.05
-
0.017
-
340 x 166 x 57.5
-
< 3.4
-
*¹ Full field of view (FOV) and full depth of field(DOF) repeatability: Set a ceramic plate as the target. Capture the plate at positive-limit DOF (near limit), zero plane (nominal), and negative-limit DOF (far limit). From each FOV, 9 edge/corner regions are evenly selected for measurement. Record the worst-case value among 27 regional z-axis repeatability*² as the result.
*² Regional Z-axis repeatability: The standard deviation (1σ) from 100 measurements of the difference in mean height (Z-value) between two adjacent regions (A and B). Each region covers 1% of the FOV.
-
Sizector® MPS-SDKRich language and platform support
Reusable interface controls
Open-source inline 3D measurement software
-
Trusted by Global Industry LeadersProven in high-end production lines of top-tier companies.
MTBF ≥100,000 h certified. Get your rush orders covered in 72h.
-
Unmatched Service & Reliability GuaranteeSpeedy response within 4 hours, solutions within 7 days, everything from fault diagnosis, part replacement to validation report.
