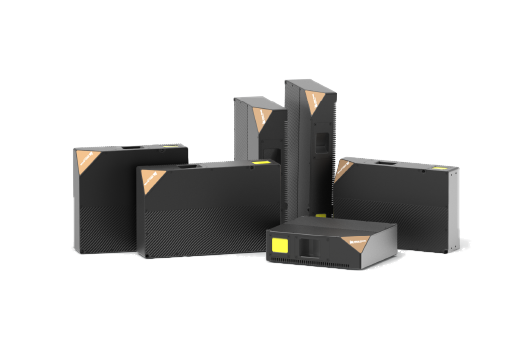

The S162 series 3D camera has a resolution of 16.2 million pixels and 5328 pixels on the long side of the FOV (non-interpolated). It is the highest native-resolution 3D camera in the industry. In the case of full point cloud output, the full-period frame rate of the S162 series can be up to amazing 4.0FPS (non-Binning), which provides a guarantee for the realization of 2D+3D integrated inspection.
With its ultra-high resolution and extreme-fast full-cycle frame rate, the S162 series 3D cameras depending on the industry-leading S technology platform are able to obtain high-resolution 3D data and high-precision 3CCD true color images without Bayer matrix in one time. The 2D+3D integrated inspection is truly realized by our new S162 series 3D camera!
Specifications | ||||||
Framerate of Whole Cycle Time | ≤14.5FPS(@4.05M) ≤4.0FPS(@16.2M) | |||||
Resolution(Mega Pixels) | 16.2M (5328x3040) | |||||
Reference Distance（mm） | 200 | 130 | 302 | 400 | 300 | 365 |
Standard FOV（mm） | 60x34.2 | 90x51.4 | 130x74.2 | 170x97.0 | 190x108.4 | 230x131.2 |
Measurement Range（mm） | ±10 | ±25 | ±30 | ±20 | ±30 | ±45 |
Single Repeatability Z（1σ）（um）*1、*2 | 0.55 | 1.09 | 1.19 | 1.30 | 1.70 | 2.05 |
Area Repeatability Z（1σ）（um）*1、*3 | 0.03 | 0.05 | 0.08 | 0.09 | 0.10 | 0.12 |
Pixel Interval（mm） | 0.011 | 0.017 | 0.024 | 0.032 | 0.036 | 0.043 |
Dimensions（mm） | 215x195x53.5 | 200x166x59.5 | 245x160x53.5 | 280x161x53.5 | 245x166x59.5 | 270x166x59.5 |
Weight（kg） | 2.6 | 2.4 | 2.5 | 2.6 | 2.7 | 2.9 |
*1. Repetition accuracy of full field of view and panoramic depth: shoot the target at the positive limit depth of field, zero plane and negative limit depth of field respectively, take 9 edge and corner areas evenly for each FOV for measurement, and take the worst result of 27 z-axis repetition accuracy values; The target is ceramic plate.
*2 Single point z-axis repetition accuracy: 100 times the standard deviation of the difference between the Z value of single point P and the z-mean value of region a. The area of a is 1% FOV, and P is located in the center of A.
*3 Area z-axis repetition accuracy: 100 times the standard deviation of the difference between the z-mean of area a and the z-mean of area B. A. B area is 1% FOV, and the two are adjacent.
