Customer Requirements:

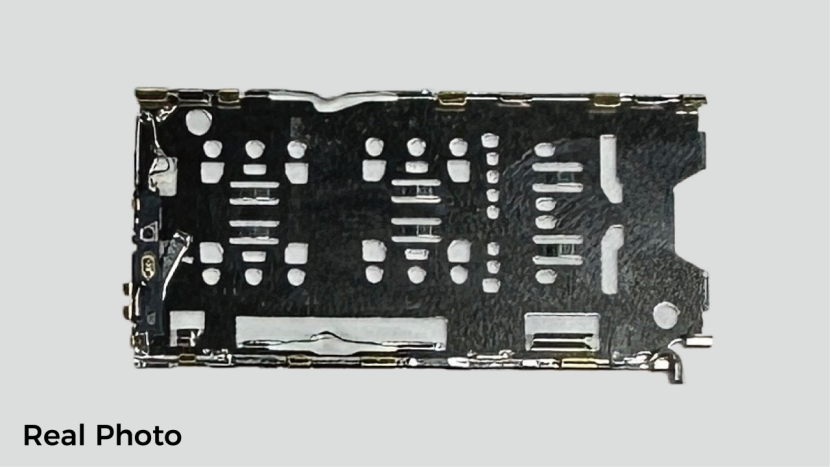

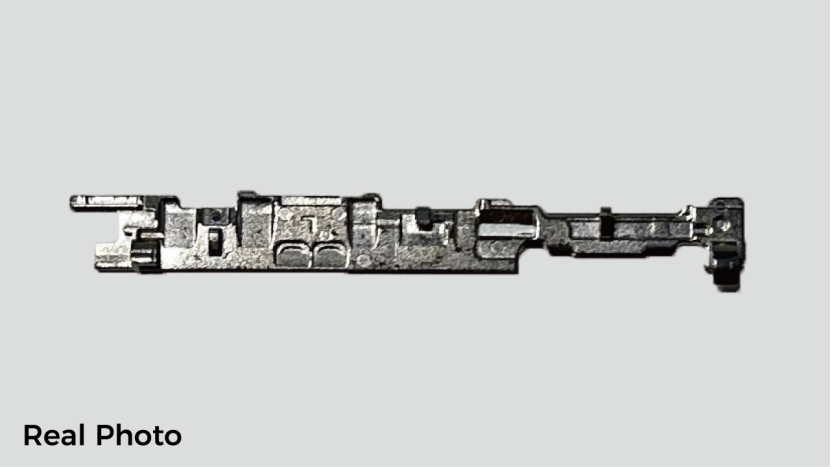

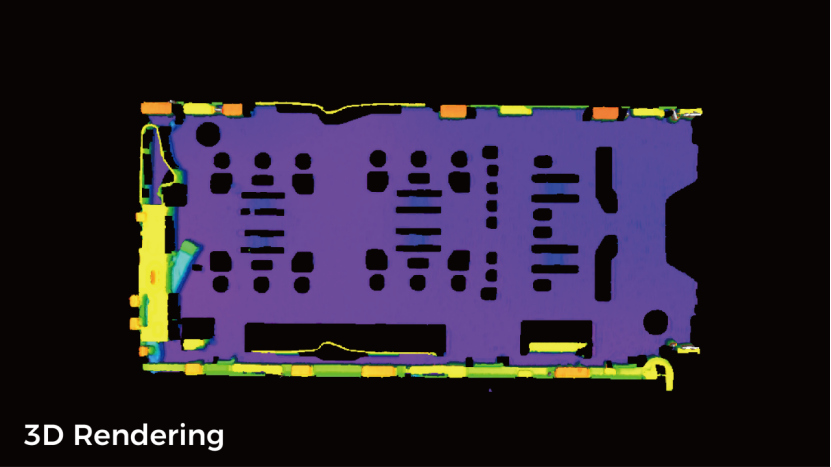

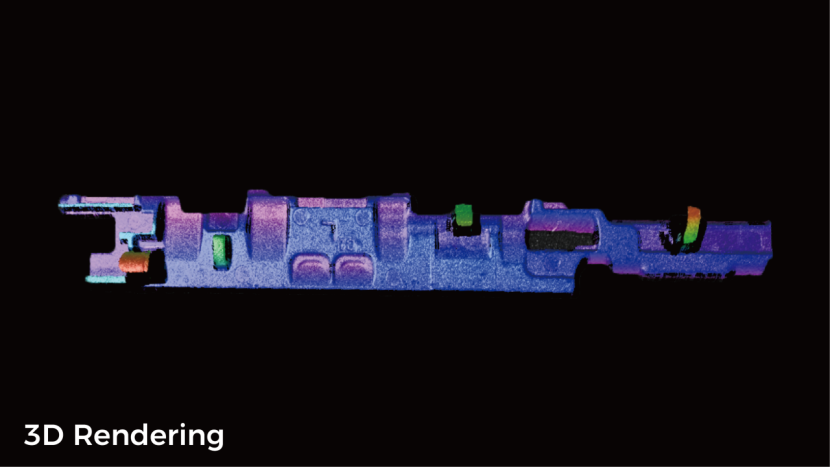

Inspect small but function-critical components in mobile phones, such as Mobile Phone SIM Card Slot, hinges, and side buttons. These components often feature fine dimensions, tight tolerances, and complex surfaces. The inspection system must achieve high accuracy without compromising production speed or cost-efficiency.

Megaphase Solution:
· Integrated with the ultra-compact Sizector® M051040 3D camera (5.1MP), optimized for inline mass production environments;
· Delivers high repeatability (<0.1 μm) and fast acquisition speed (8.8 FPS) to meet high-throughput requirements;
· Compact design (135×85×35 mm, 0.52 kg) for easy integration into tight production spaces;
· Capable of detecting dimensional deviations, part warpage, improper assembly, and fine surface defects;
· Snapshot architecture with no scanning, ensuring stable performance and reduced motion-induced errors.

Project Results:
· Successfully implemented on multiple consumer electronics lines for real-time inspection of structural-functional components, achieving a balance between performance, stability, and cost-efficiency.
